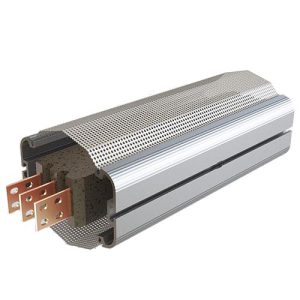

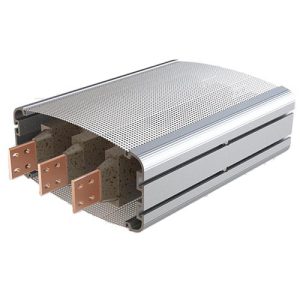

E-Line MV Busbar
Conductor Material and Rated Currents | ||
24KVCopper Conductor | 12KVCopper Conductor | 24KVAluminum Conductor |
1800/2100/3200/4000/5000/5700A | 950/1150/1350/1650/2250/2750A | 1500 / 2000 / 2500 / 3000A |
Copper Conductor (Cu) | |
| IEC 62271-200 Edition 2.0 2011-10; IEC 62271-307 Edition 1.0 2015-09; IEC 61439-6 Edition 1.0 2012-05; STL Guide to IEC 62271-200 | Standards |
| Ur kV 12 | Rated Voltage |
| Ud kV 28 | Rated power frequency withstand voltage |
| Up kV 75 | Rated impulse withstand withstand voltage |
| f Hz 50 | Rated Frequency |
| 50J, greater than IK10 | External Mechanical Impacts (IK Code)* |
| Rated Current | Busbar Code | Phase Conductor | PE | Conductor Cross Section | Busbar Weight (3 Conductors) |
|---|---|---|---|---|---|
| A | mm² | mm² | mm² | kg/m | |
| 950 | 09 | 240 | 5944 | 40*6 | 48.32 |
| 1150 | 11 | 330 | 5944 | 55*6 | 56.85 |
| 1350 | 13 | 420 | 5944 | 70*6 | 63.89 |
| 1650 | 16 | 570 | 8105 | 95*6 | 76.18 |
| 2250 | 22 | 840 | 8905 | 140*6 | 97.13 |
| 2750 | 27 | 1200 | 9704 | 200*6 | 124.54 |
Aluminium Conductor (Al) | |
| IEC 62271-200 Edition 2.0 2011-10; IEC 61439-6 Edition 1.0 2012-05; IEC 62271-307 Edition 1.0 2015-09; STL Guide to IEC 62271-200 Edition 2.0 2011-10 | Standards |
| Ur kV 24 | Rated Voltage |
| Ud kV 50 | Rated power frequency withstand voltage |
| Up kV 125 | Rated impulse withstand withstand voltage |
| f Hz 50/60 | Rated Frequency |
| 50J, > IK10 | External Mechanical Impacts (IK Code)* |
| Rated Current | Busbar Code | Phase Conductor | PE | Conductor Cross Section | Busbar Weight (3 Conductors) |
|---|---|---|---|---|---|
| A | mm² | mm² | mm² | kg/m | |
| 1500 | 15 | 525 | 8515 | 75*7 | 95 |
| 2000 | 20 | 1200 | 8515 | 100*12 | 100 |
| 2500 | 25 | 1800 | 9394 | 150*12 | 120 |
| 3000 | 30 | 2400 | 10194 | 200*12 | 143 |
Copper Conductor (Cu) | |
| IEC 62271-200 Edition 2.0 2011-10; IEC 61439-6 Edition 1.0 2012-05; IEC 62271-307 Edition 1.0 2015-09; STL Guide to IEC 62271-200 Edition 2.0 2011-10 | Standards |
| Ur kV 24 | Rated Voltage |
| Ud kV 50 | Rated power frequency withstand voltage |
| Up kV 125 | Rated impulse withstand withstand voltage |
| f Hz 50 | Rated Frequency |
| 50J, > IK10 | External Mechanical Impacts (IK Code)* |
| Rated Current | Busbar Code | Phase Conductor | PE | Conductor Cross Section | Busbar Weight (3 Conductors) |
|---|---|---|---|---|---|
| A | mm² | mm² | mm² | kg/m | |
| 1800 | 18 | 490 | 8515 | 70*7 | 104 |
| 2100 | 21 | 525 | 8515 | 75*7 | 106 |
| 3200 | 32 | 1200 | 8515 | 100*12 | 122 |
| 4000 | 40 | 1800 | 9394 | 150*12 | 152 |
| 5000 | 50 | 2400 | 10194 | 200*12 | 187 |
| 5700 | 57 | 3000 | 10194 | 200*15 | 205 |
To inquire about the price of all types of Busduct , contact experts DizelSanat.
