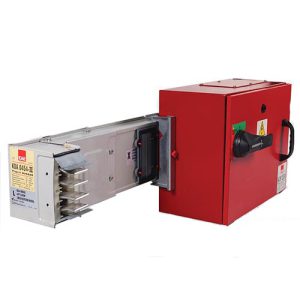

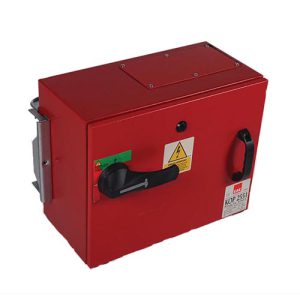

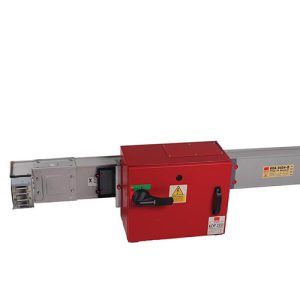

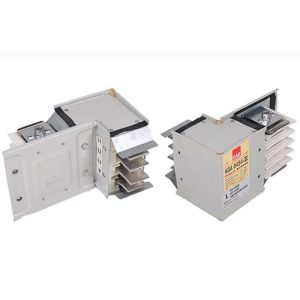

E-Line KO-II Busbar

Conductor Material and Rated Currents
Copper Conductor	Aluminum Conductor
250A / 315A / 400A / 600A / 800A	160A / 250A / 315A / 400A / 500A / 600A / 630A / 800A

Aluminium Conductor (KOA)
06 08 02 03 04 06 08 Standards IEC 61439-6, TS EN 61439-6, IEC 61439-1, TS EN 61439-1	Standards
Ui V 1000	Rated Isolation Voltage
Ue V 1000	Max. Rated Operational Voltage
Uimp kV 12	Rated Impulse Withstand Voltage
f Hz 50	Rated Frequency
III	Pollution Degree
IP 55	Protection Degree
Plug-in Busbar IK09	External Mechanical Impacts (IK Code)*
Basic protection (HD 60364-4-41, clause A1)	حفاظت برای ایمنی

Rated Current	Busbar Code	L1,L2,L3,N	PE (4 ½)	PE (5 )	Conductor Cross Section	Busbar Weight (4 Conductors)	Busbar Weight (5 Conductors)
A		mm²	mm²	mm²	mmxmm	kg/m	kg/m
160	01	120	60	120	583	7	7.3
250	02	150	75	150	593	7.5	8
315	03	180	90	180	603	8	8.7
400	04	300	150	300	643	10	11
500	05	375	187.5	375	668	11	12
600	06	450	225	450	693	12	13
800	08	660	330	660	730	15.1	17

Copper Conductor (KOC)
Standards IEC 61439-6, TS EN 61439-6, IEC 61439-1, TS EN 61439-1	Standards
Ui V 1000	Rated Isolation Voltage
Ue V 1000	Max. Rated Operational Voltage
Uimp kV 12	Rated Impulse Withstand Voltage
f Hz 50	Rated Frequency
III	Pollution Degree
IP 55	Protection Degree
Plug-in Busbar IK09	External Mechanical Impacts (IK Code)*
Basic protection (HD 60364-4-41, clause A1)	حفاظت برای ایمنی

Rated Current	Busbar Code	L1,L2,L3,N	PE (4 ½)	PE (5 )	Conductor Cross Section	Busbar Weight (4 Conductors)	Busbar Weight (5 Conductors)
A		mm²	mm²	mm²	mmxmm	kg/m	kg/m
250	02	120	60	120	583	10	11
315	03	150	75	150	593	11	12.5
400	04	180	90	180	603	12.5	14
600	06	300	150	300	643	16	19
800	08	450	225	450	693	18	21

To inquire about the price of all types of Busduct , contact experts DizelSanat.
